[Résolu] Connection OK. Possible cause : invalid credentials

Question [Résolu] Connection OK. Possible cause : invalid credentials

  • Friday, March 01, 2013 11:25 AM


    Sign In to Vote
    0
    Hello,



    I want to ask you my problem because i've already search on the web during many hours and i've find nothing.

    With VirtualBox, i've installed 2008 R2 x64 (AD, DNS, WDS, DHCP), MDT 2012 and AIK. I use boot.wim and install.wim from a Windows 7 x86.

    If I put the boot.wim and install.wim in WDS without touch MDT, i can boot on PXE client and the install can be does. But when i put the install.wim on MDT 2012

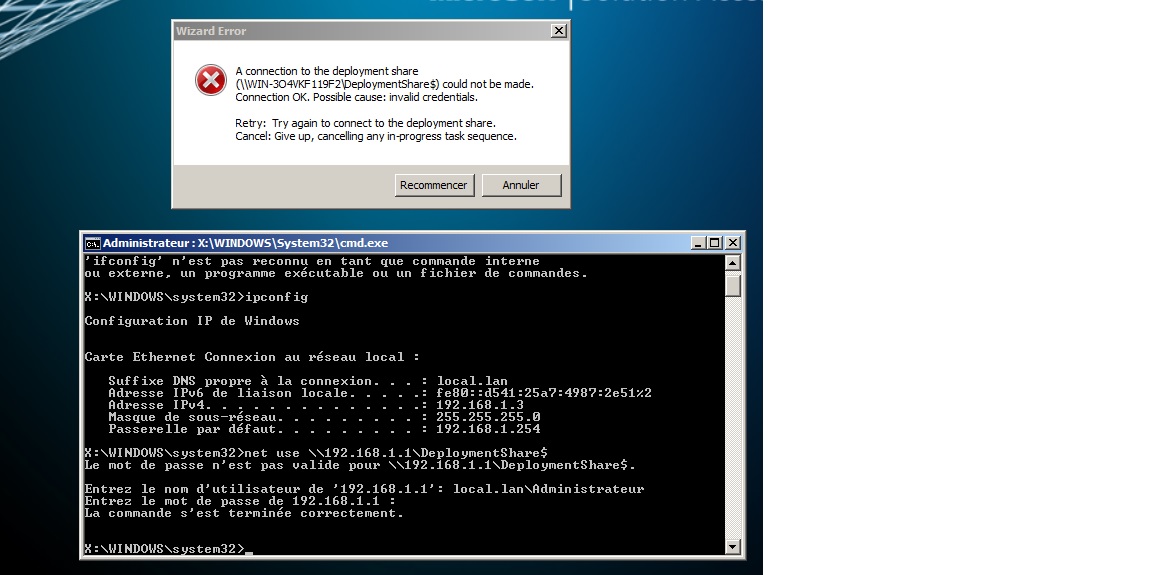

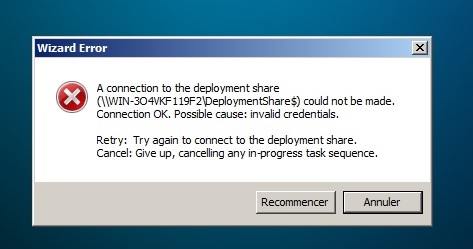

    and the saving the configuration in order to create a LiteTouchPE_x86.wim and put it on WDS, when i boot with the client, i've this message :

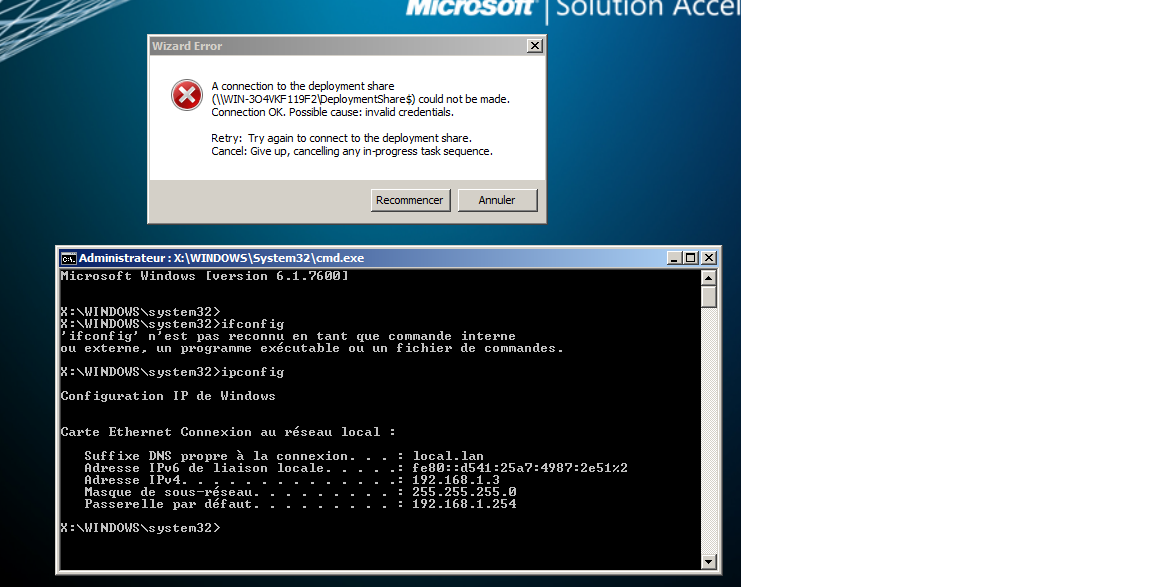

    But i have a valid IP :

    And i can access to my share :

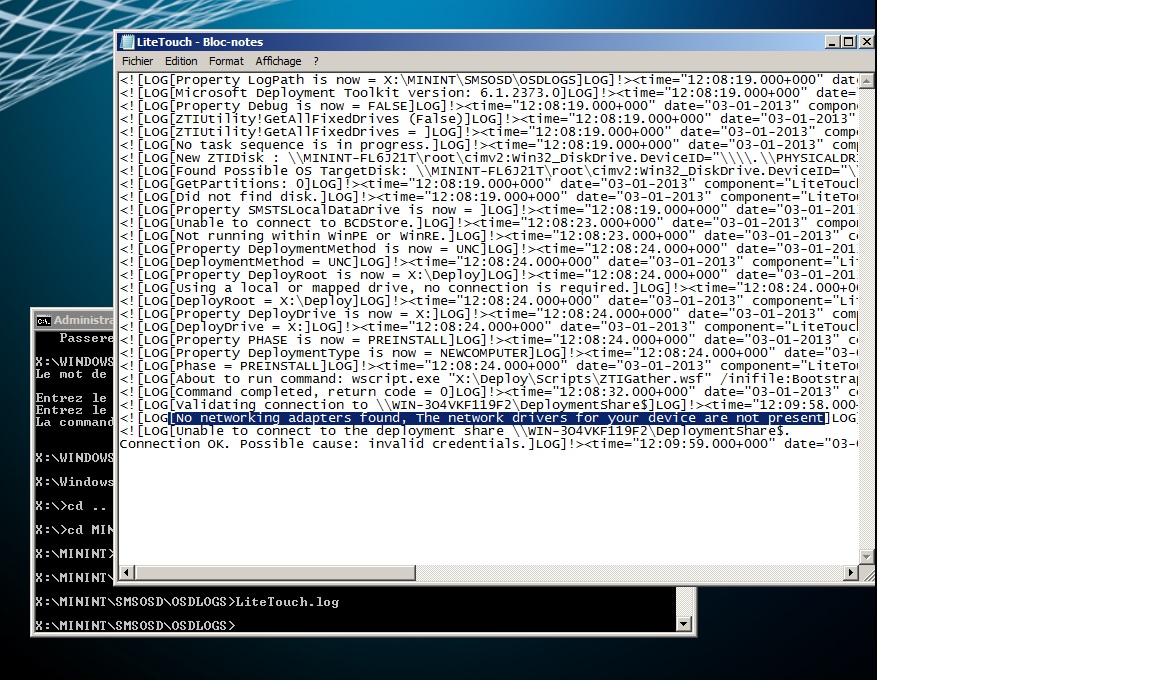

    And the log say me :

    My BOOTSTRAP.INI :

    [Settings]
    Priority=Default

    [Default]
    DeployRoot=\\WIN-3O4VKF119F2\DeploymentShare$


    I have do the same with VMWARE, (and a friend do it too in the same time with SKYPE, so we have the same configuration) and, same problem, but my friend's configuration is run !!

    Thanks for your help (i've do what i can for my english)

    Have a nice day








    • Edited by Spunamo Friday, March 08, 2013 6:37 AM Résolu
    •


All Replies

  • Friday, March 01, 2013 11:42 AM


    Sign In to Vote
    0

    i know that for vmware i had to add the network drivers from intel or i would get the same problem.

    might be that you need specific drivers for the NIC virtual box is trying to emulate as well.


  • Friday, March 01, 2013 12:04 PM


    Sign In to Vote
    0

    Hi,

    Thanks for your reply.

    But why the system is running with my friend and not with me ? And on the 2008 R2 x64, i've not need to install NIC driver while 2008 and Win 7 have the same kernel isn't it ?

    I want to try your solution but i don't know where i can found the NIC used by my Win 7 client. Someone know that ?

    Thanks

    EDIT : I've found drivers on Intel's Web Site. I've took INTEL PRO/1000 MT.

    I'll let you know

    • Edited by Spunamo Friday, March 01, 2013 12:26 PM Drivers
    •

  • Friday, March 01, 2013 12:40 PM


    Sign In to Vote
    0

    Hi,

    With the driver's package, there is the same problem ...

    Do you have another solution

    Thanks


  • Friday, March 01, 2013 12:52 PM


    Sign In to Vote
    0

    maybe your friend used slightly different settings?

    you would have to check what kind of virtual NIC virtual box uses and download the driver for that either from virtual box self or from the brand it is emulating.

    after adding the drivers don't forget to update you deployment share and then upload them to your WDS.


  • Friday, March 01, 2013 1:03 PM


    Sign In to Vote
    0

    Hi,

    I stopped to use VirtualBox, now i used VMWARE. I found the drivers but the problem is already there.

    In MDT, i do my test with the light settings, so it's impossible to go wrong.

    I already update my deployement share and i already upload to my WDS.

    I don't see what is the problem. Do you think my PHYSICAL NIC may the problem ?

    Thanks


  • Friday, March 01, 2013 1:32 PM


    Sign In to Vote
    0
    Pls try to use ip address instead of computer name in bootstrap.ini, like this DeployRoot=\\Ip\DeploymentShare$

    blacktitann


  • Friday, March 01, 2013 1:50 PM


    Sign In to Vote
    0

    Already try...

    About drivers, I've put drivers of INTEL PRO/1000 in WDS and nothing have changed.



  • Friday, March 01, 2013 11:12 PM


    Sign In to Vote
    0

    Spunamo,

    Best thing I think is to start over again.

    Create a new deployment share with the following information in your bootstrap.ini:

    [Settings]
    Priority=Default

    [Default]
    DeployRoot=\\servername.contoso.local\deploymentshare$
    SkipBDDWelcome=YES
    KeybordLocale=en-US

    UserID=mdt_sa-account
    UserPassword=P@55w0rd
    UserDomain=contoso.local

    Then, in the MDT deployment workbench, under "Out-of-the-box Drivers", create an new folder called "Virtual" or "VMware", if you use VMware Workstation for instance, then browse to the installation folder of VMware workstation, which in my case is: "C:\Program Files (x86)\VMware\VMware Workstation", from there mount the "Windows.iso" (with virtual clone drive, or if you have Windows 8, mount it directly). Then go the import-drivers and target the driver directory on the mounted iso, to import the VMware drivers for Workstation located here: "X:\Program Files\VMware\VMware Tools". Then the drivers will be imported. Next update and regenerate your boot-image and use this to connect to your deploymentshare.


    Good luck!

    If this post is helpful please click "Mark for answer", thanks! Kind regards



  • Saturday, March 02, 2013 11:27 AM


    Sign In to Vote
    0

    Hi,

    Thanks for your reply.

    What i do :

    - Start 2008, delete the deployment Share in Workbench and delete the content of the folder in c:\DeploymentShare
    - Create a new deployment share without change settings on the wizard
    - Under "Operating System" I import install.wim from Windows 7 x64 (took on DreamSpark) without change settings on the wizard
    - I open the properties of the deployment share and change the bootstrap as :

    [Settings]
    Priority=Default
    [Default]
    DeployRoot=\\WIN-3O4VKF119F2.local.lan\DeploymentShare$
    SkipBDDWelcome=YES
    KeybordLocale=en-US
    UserID=Administrateur
    UserPassword=xxxxx
    UserDomain=local.lan

    - I create a foler called VMWARE under Out-of-box and mount Windows.iso from VMWARE's folder in order to put the folder called Drivers into the .iso on MDT
    - I generate the .wim file
    - I put the LiteTouchePE_x64.wim from C:\DeploymentShare\boot in WDS
    -I run the client and boot PXE



    -->



    And on LiteTouch.log, i can see : no networking adapters found the network drivers for your device are not present

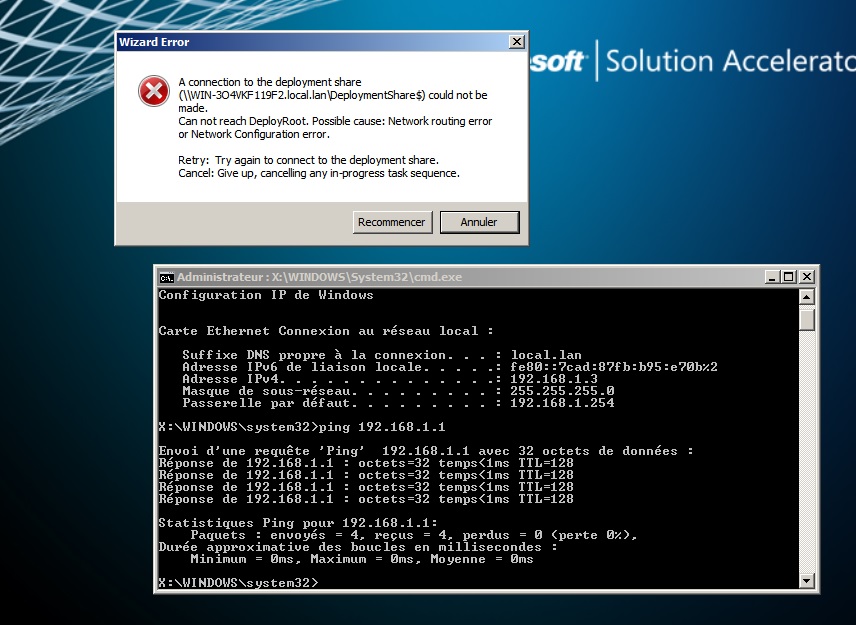

    But it is the first time i've the message on the wizard error on the screenshot

    I precise : The 2 VM are on "Host Only"

    • Edited by Spunamo Saturday, March 02, 2013 11:33 AM
    •

  • Saturday, March 02, 2013 1:43 PM


    Sign In to Vote
    0

    The NIC drivers injected into PE are not suitable for the PE.

    IF PE is 3.0, NIC drivers for Win 7 are needed.

    If PE is 4.0, NIC drivers for Win 8 are needed.


  • Saturday, March 02, 2013 3:21 PM


    Sign In to Vote
    0

    Hi,

    how do I know which version should I use ?

    Thanks


  • Sunday, March 03, 2013 5:02 AM


    Sign In to Vote
    0

    Do you use WAIK for Windows 7 or ADK 8.0?

    If WAIK, PE3.0 (also known as PE of Windows 7) is used.

    If WDK , PE4.0(also known as PE of Windows 8) is used.


    WAIK or ADK are both OK in MDT 2012.
    • Edited by Long Bo Sunday, March 03, 2013 5:03 AM
    •

  • Sunday, March 03, 2013 7:28 AM


    Sign In to Vote
    0

    1. Try to check with server credential hosting the MDT server.

    2. If you are deploying on laptop , please ensure you have network driver is added in MDT and deployment share is updated.

    3. Try to disable AV if installed and check.

    Regards, Shishir Kushawaha "If this thread answered your question, please click on "Mark as Answer"


  • Sunday, March 03, 2013 9:58 AM


    Sign In to Vote
    0

    Hello,

    I'm using AIK.

    In the readme of the folder's installation, i can read :

    Versions prises en charge pouvant être installées avec le Kit d’installation automatisée (Windows AIK).
    Le Kit d’installation automatisée (Windows AIK) est pris en charge sur les versions suivantes :

    Windows 7

    Windows Server 2008 R2

    Windows Server 2008

    Windows Vista

    Windows Server® 2003

    I've the good version


  • Sunday, March 03, 2013 10:04 AM


    Sign In to Vote
    0

    Hello,

    I don't understand what your 1.

    I'm not on a laptop, i'm on VMWARE and drivers which are used are INTEL PRO/1000 from VMWARE's folder

    I haven't AV on VM, but i tried to disabled AV on the host, the problem is yet here


    • Edited by Spunamo Sunday, March 03, 2013 10:05 AM
    •

  • Monday, March 04, 2013 3:44 AM


    Sign In to Vote
    1

    Just try to update your AIK for Windows 7 to AIK for Windows 7 SP1

    http://www.microsoft.com/en-US/download/details.aspx?id=5188

    Have a try.

    Instructions

    To apply the supplement to your already installed Windows® Automated Installation Kit (Windows AIK), download the ISO and use the instructions listed in the Windows AIK readme.

    • Edited by Long Bo Monday, March 04, 2013 3:46 AM
    •

  • Monday, March 04, 2013 8:24 AM


    Sign In to Vote
    0

    i just remembered that the problem was actually based on which image MDT used to make the winpe image at least in my case.

    i either removed all imported OS from that deploymentshare and then updated my deployment share with the completely regenerate option.

    check if that fixes it for you or do it the other way around, import a windows 7 image and let MDT base it's winpe image off that.

    hope this helps and good luck trying to fix it.


  • Monday, March 04, 2013 6:44 PM


    Sign In to Vote
    0

    Hi guys,

    I restore my VM on a point where i had just installed 2008 R2, AIK, WDS (unconfigured), DHCP (configured), MDT 2010 (unconfigured), AD, DNS.

    Next, i updated AIK, and i thought that will not solve the problem because i remember done this on Virtualbox and the problem is yet here.

    BUT, apparently, this solve the problem.

    I haven't add some drivers on MDT/WDS, and that is running !

    I will try to do the same thing without updating AIK, and i will report you the result !

    Thanks !

    EDIT : I've launched VirtualBox and run my 2008 R2 in order to update AIK and that's run !!

    But, in the readme here : http://technet.microsoft.com/fr-FR/library/dd349350(WS.10).aspx nothing is talking about my issue. Can you enlighten me ?

    Thanks

    • Edited by Spunamo Monday, March 04, 2013 10:23 PM Test on VirtualBox and that is OK !!
    •

  • Tuesday, March 05, 2013 4:10 AM


    Sign In to Vote
    0

    I just think that maybe AIK updated to AIK for Windows 7 SP1 can adapt to the new NIC drivers of Windows 7.

    In other words, newly released NIC drivers may be based on Windows 7 SP1.


  • Tuesday, March 05, 2013 9:17 PM


    Sign In to Vote
    0

    Hello,

    I come back to you because i've talked with my friend and he said when we do our project, he hasn't do update AIK and he uses Win 7 x64 SP1. So i don't understand anything ... Why that's work for him and not for me ?!


  • Wednesday, March 06, 2013 1:21 AM


    Sign In to Vote
    0

    Really strange!

    I am puzzled too.

    Expect official explanations~~
